Features
-Supports AMD Ryzen 5000 Vermeer / Ryzen APU processors
-AMD X570 single chip architecture
-Supports 4-DIMM DDR4-4000+(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 / 1866 up to 128GB maximum capacity
-Supports USB 3.1 Gen1
-Supports PCI-e M.2 4.0 (64Gb/s)
-Supports HDMI® 4K resolution

Specifications

Chipset
-AMD X570

CPU SUPPORT
-Supports AMD AM4 Socket for 3rd and 2nd Gen Ryzen/3rd, 2nd and 1st Gen Ryzen with Radeon Vega Graphics Processors
-Supports AMD AM4 Socket for 4th Gen (Vermeer) processors

MEMORY
-Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
-Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000+(OC)
-4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
-Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module
-* DDR4 - 2667 only for Ryzen CPU.
-* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO
-By CPU model
-Supports DX12
-Supports HDCP

STORAGE
-4x SATA III Connector (6Gb/s): Supports RAID 0, 1, 10
-1x M.2 (Key M) Slot (PCIE-M2) :
-Supports M.2 Type 2242/ 2260/ 2280 SSD module
-Supports SATA III (6.0Gb/s) SSD
-Supports PCI-E Gen4 x4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.
-* Specifications vary by CPU types

LAN
-RTL8111H
-10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
-Support Super LAN Surge Protection

AUDIO CODEC
-ALC887
-7.1 Channels, High Definition Audio, Hi-Fi(Front)

USB
-6x USB 3.1 Gen1 (5Gb/s) port (4 on rear I/Os and 2 via internal headers)
-6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
-2x PCIe 3.0 x1 Slot
-1x PCIe 4.0 x16 Slot (PEX16_1) * Note :
-Supports x16 lanes with AMD Ryzen 2nd and 3rd Gen processors.
-Supports x8 lanes with AMD Ryzen with Radeon Vega Graphics processors.
-* According to different CPUs will have different speeds.
-* Note: PCIe 4.0 speed only for AMD Ryzen 3rd Gen Matisse.
-* Specifications vary by CPU types

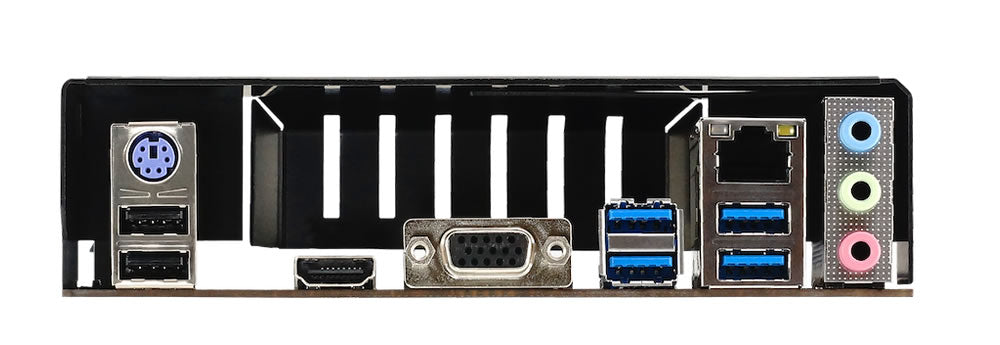

REAR I/O
-1x PS/2 Keyboard Port
-1x HDMI® Port
-1x VGA Port
-1x LAN port
-4x USB 3.1 Gen1 (5Gb/s) Port
-2x USB 2.0 Port
-3x Audio Jack

INTERNAL I/O
-4x SATA III (6.0Gb/s) Connector
-2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
-1x USB 3.1 Gen1 (5Gb/s) Header (each header supports 2 USB 3.1 Gen1 ports)
-1x 8-Pin Power Connector
-1x 24-Pin Power Connector
-1x CPU Fan Connector
-1x System Fan Connector
-1x System Fan Connector
-(Southbridge Heatsink Fan Header : This connector is only available for Southbridge Heatsink Fan.)
-1x Front Panel Header
-1x Front Audio Header
-1x Clear CMOS Header
-1x COM Port Header
-2x LED Header (12V/ 5V)

DIMENSION
-Micro ATX Form Factor Dimension: 243mm x 235mm ( W x L )

OS SUPPORT
-Supports Windows 10(64bit) / 11(64bit)
-※Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE
-Racing GT EVO Utility
-BullGuard
