Features
-Supports 9th & 8th Generation Intel® Core™ Processor
-Intel B360 single chip architecture
-Support 2-DIMM DDR4-1866/2133/2400/2666 up to 32G maximum capacity
-Support 12 x PCI-E 3.0 slots
-Support M.2 (6Gb/s) Connector
-Support HDMI® Connector

Specifications

Chipset
-Intel B360

CPU SUPPORT
-9th Gen Intel® Core™ i9 LGA 1151 Processor
-9th Gen Intel® Core™ i7 LGA 1151 Processor
-9th Gen Intel® Core™ i5 LGA 1151 Processor
-9th Gen Intel® Core™ i3 LGA 1151 Processor
-8th Gen Intel® Core™ i7 LGA 1151 Processor
-8th Gen Intel® Core™ i5 LGA 1151 Processor
-8th Gen Intel® Core™ i3 LGA 1151 Processor
-8th Gen Intel® Pentium® LGA 1151 Processor
-8th Gen Intel® Celeron® LGA 1151 Processor
-Maximum CPU TDP (Thermal Design Power) : 95Watt
-8th *Generation Intel® Core™ Processor Family only support 300-Series.

MEMORY
-Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
-2 x DDR4 DIMM Memory Slot
-Max. Supports up to 32GB Memory
-Each DIMM supports non-ECC 4/8/16GB DDR4 module

INTEGRATED VIDEO
-By CPU model
-Supports DX12
-Supports HDCP

STORAGE
-4 x SATA III Connectors (6GB/s)
-* Specifications vary by CPU types1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD
-* Specifications vary by CPU types

LAN
-Realtek RTL8111H - 10/100/1000Mb/s Controller
-Support Super LAN Surge Protection

AUDIO CODEC
-Realtek ALC887 8-Channel HD Audio

USB
-6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)
-6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT
-1 x PCI-E 3.0 x16 Slot
-* Specifications vary by CPU types11 x PCI-E 3.0 x1 Slots
-* Specifications vary by CPU types*Maximum VGA cards mining support are depending on VGA Driver or mining software.
-* Specifications vary by CPU types

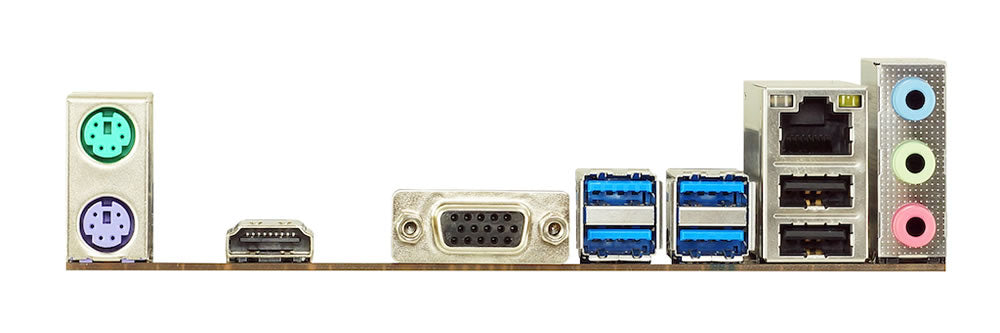

REAR I/O
-1 x PS/2 Mouse
-1 x PS/2 Keyboard
-4 x USB 3.1 Gen1 Ports
-2 x USB 2.0 Ports
-1 x HDMI® Port
-1 x VGA Port ,resolution up to 1920 x 1200 @60Hz
-1 x LAN Port
-3 x Audio Jacks

INTERNAL I/O
-1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)
-2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
-4 x SATA III Connectors (6Gb/s)
-1 x Front Audio Header
-1 x Front Panel Header
-1 x CPU Fan Connector
-2 x System Fan Connector
-1 x 8-Pin Power Connector
-2 x 6-Pin PCIe Power Connector
-2 x 24-Pin Power Connector
-1 x Clear CMOS Header
-1 x COM Port Header

H/W MONITORING
-CPU / System Temperature Monitoring
-CPU / System Fan Monitoring
-System Fan Monitoring
-Smart / Manual CPU Fan Control
-System Voltage Monitoring

DIMENSION
-ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L )

OS SUPPORT
-Supports Windows 10(64bit) / 11(64bit)
-※Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE
-BullGuard

FEATURES
-PCI-E Slot Detection BIOS Boot Screen
