Features
-Supports 12th/14th Generation Intel Core™ Processor
-Intel B660 single chip architecture
-Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC) up to 64 GB Memory
-Supports PCIe 4.0
-Supports PCIe M.2 3.0 (32Gb/s)
-Supports HDMI® 4K2K
-Supports USB 3.2 Gen1
-Support WiFi 6 & 6E module (No WiFi card included)

Specifications

Chipset
-Intel B660

CPU SUPPORT
-Support for 12th/ 13th /14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
-* Please refer to www.biostar.com.tw for CPU support list.

MEMORY
-Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)
-2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
-Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
-Support Intel Extreme Memory Profile (XMP) memory modules
-* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO
-Supports DX12
-Supports HDCP

STORAGE
-Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports
-Intel B660 Chipset
-1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
-Supports M.2 Type 2242 /2260 /2280 SSD module
-Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD
-4 x SATA III Connector (6Gb/s) : Supports AHCI
-* Specifications vary by CPU types

LAN
-Intel I219V
-10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC
-ALC897
-7.1 Channels, High Definition Audio

USB
-4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
-8 x USB 2.0 ports(4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
-INTEL 12th/13th/14th Processors
-1 x PCIe 4.0 x16 Slot (x16 mode)
-INTEL B660 Chipset
-1 x PCIe 3.0 x1 Slot
-* Specifications vary by CPU types

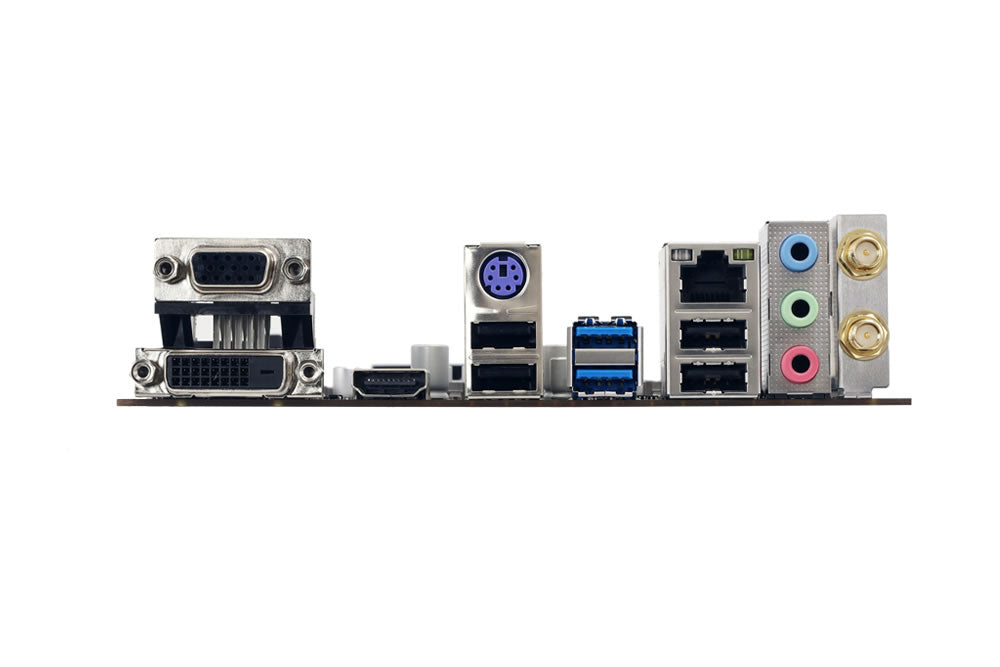

REAR I/O
-1 x WIFI Antenna Port
-1 x PS/2 Keyboard/ Mouse Port
-1 x HDMI®
-1 x VGA+DVI Port
-2 x USB 3.2 (Gen1) ports
-4 x USB 2.0 ports
-1 x LAN port
-3 x Audio Jack

INTERNAL I/O
-4 x SATA III Connector (6Gb/s)
-1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
-2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
-1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
-1 x 8-Pin Power Connector
-1 x 24-Pin Power Connector
-1 x CPU Fan Connector
-1 x System Fan Connector
-1 x Front Panel Header
-1 x Front Audio Header
-1 x Speaker Header
-1 x Clear CMOS Header
-1 x COM Port Header
-1 x TPM Header
-* M.2 (E key) Wi-Fi card is not provided

H/W MONITORING
-CPU / System Temperature Monitoring
-CPU / System Fan Monitoring
-Smart / Manual CPU Fan Control
-CPU/DDR Voltage Monitoring

DIMENSION
-Micro ATX Form Factor Dimension: 23.6cm x 20.8cm ( W x L )

OS SUPPORT
-Supports Windows 10 (64bit) / 11(64bit)
-※Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE
-BullGuard

ACCESSORIES
-2 x SATA Cable
-1 x I/O Shield
-1 x DVD Driver
-1 x Quick Guide
-1 x WiFi antenna accessories(Wi-Fi accessories are optional, contact your local dealer to purchase.)
