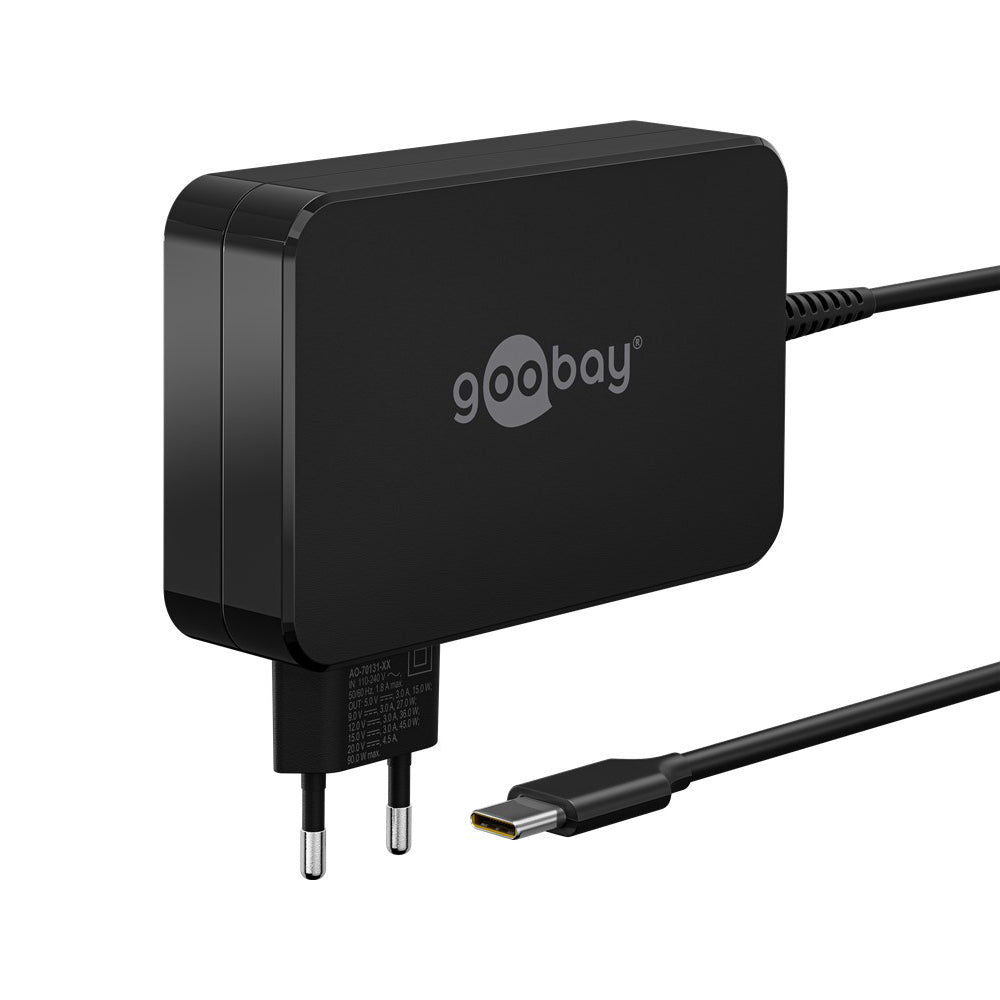

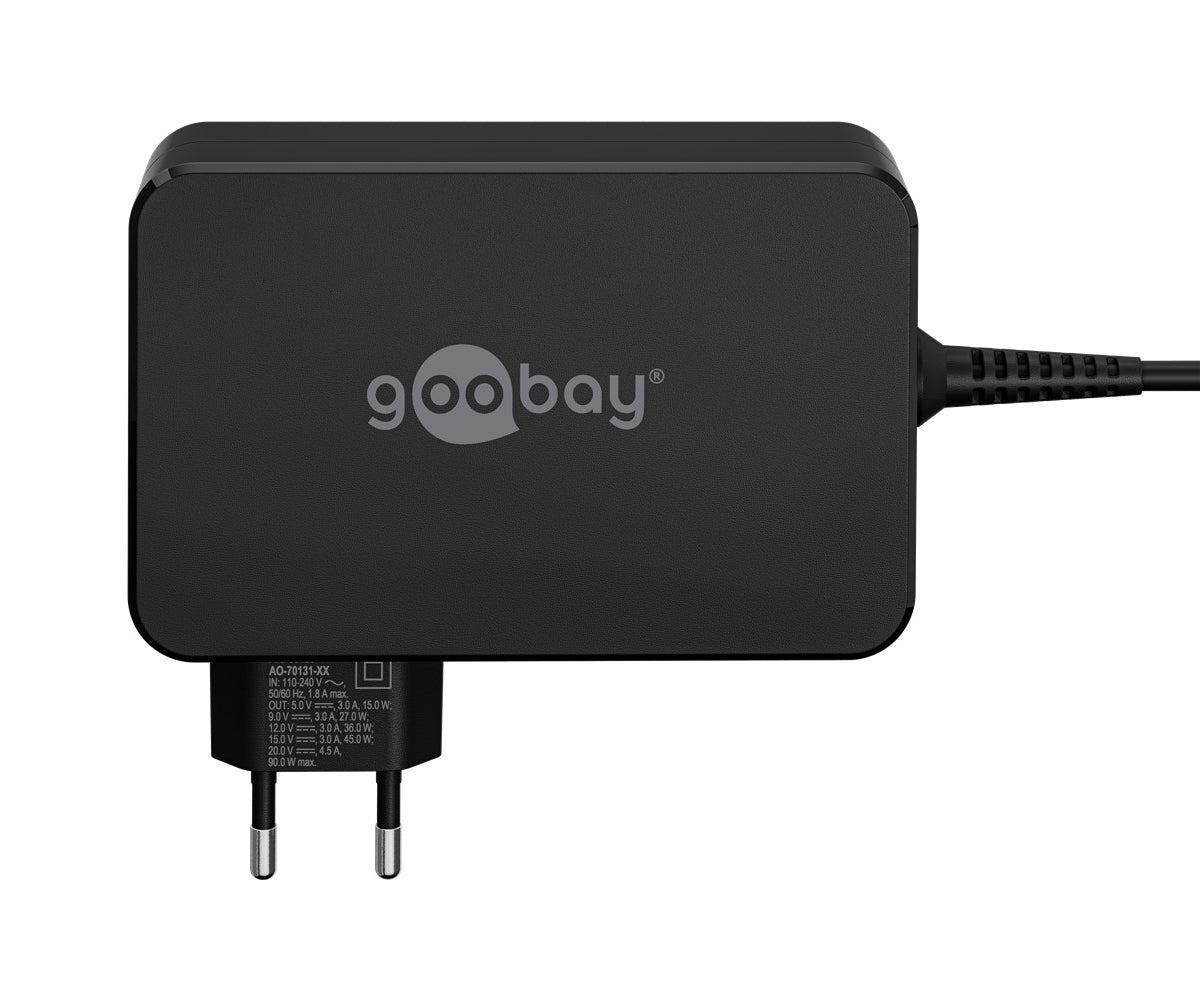

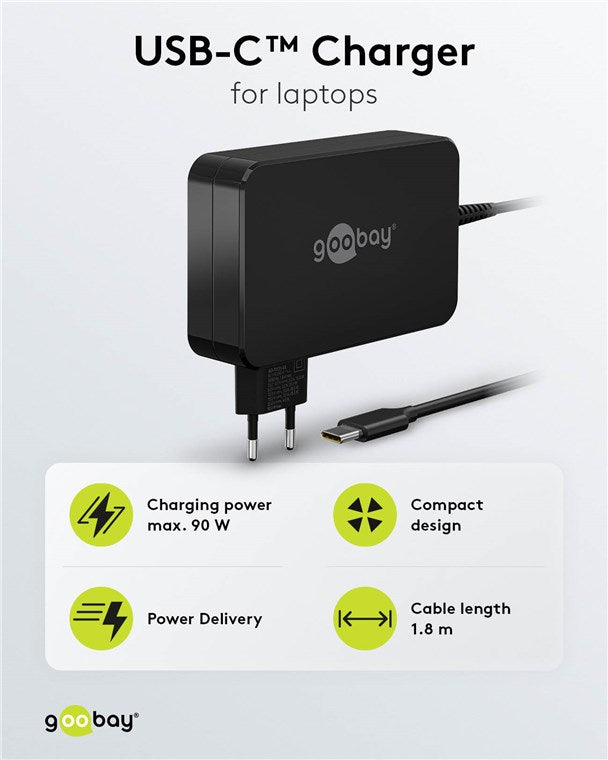

compact notebook power supply with fast charging function (Power Delivery)

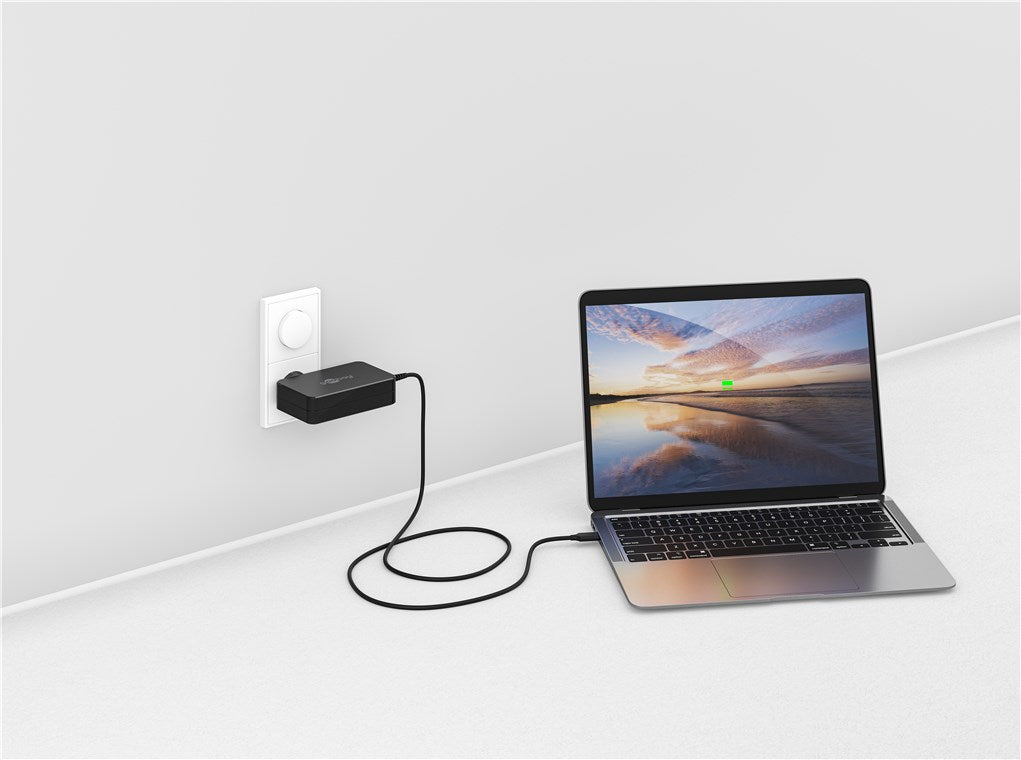

Small, yet larger than life! The compact, lightweight power supply unit is the ultimate companion for your mobile life: With maximum power at minimum size, it even charages high-performance notebooks quickly and reliably with up to 90 W. With the versatile USB-C™ connection, it is suitable for current laptops such as the Apple MacBook or the Huawei MateBook.

Features

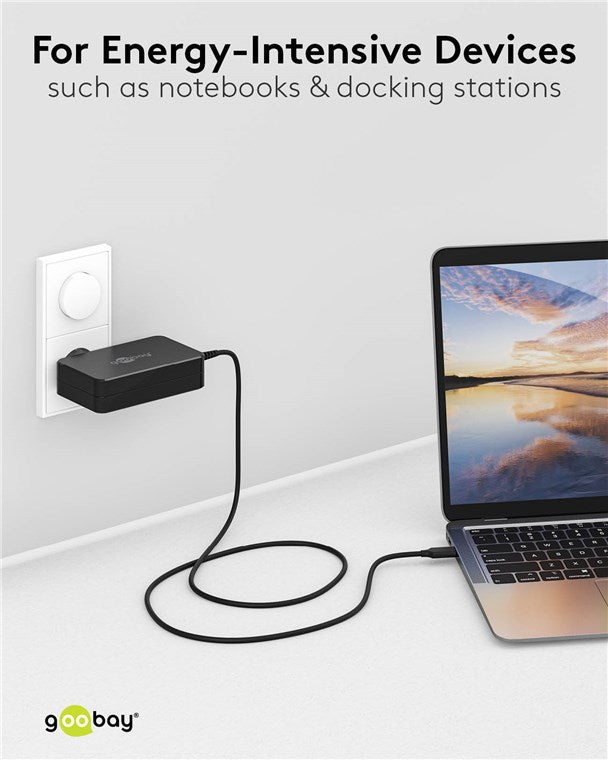

• High-performance fast charger for charging and powering energy-intensive devices such as high-performance notebooks or docking stations with up to 90 W

• Compatible with notebooks from most major manufacturers such as Apple, Samsung, Lenovo, Huawei, HP, Asus or Acer

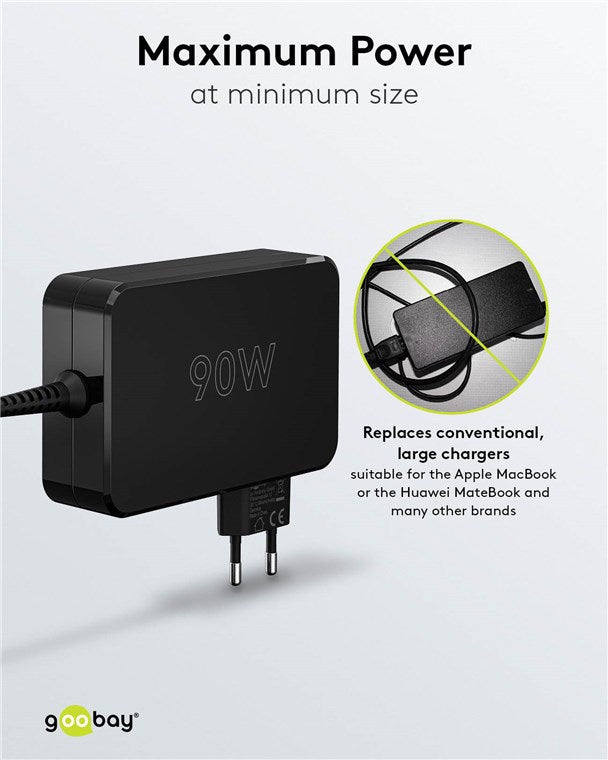

• Significantly more compact and lighter than conventional laptop chargers, making it the perfect companion on the go and when travelling

• With Power Delivery 3.0, the USB charger comes with a particularly safe and dynamic charging method that identifies the optimal output power for the connected device

• With the new USB-C™ standard connector, the power supply unit is a universal charging solution for many devices that can be used in the long run

• Integrated protection electronics safeguard connected devices against overcurrent, overcharging and overheating

• Convenient 1.8 m cable length for easily connecting the 90 W charger to distant sockets

Technical specifications

ErP

• Average active efficiency: 79.1 %

• Efficiency at low load (10 %): 69.4 %

• No-load power consumption: 0.05 W

Performance

• Power consumption: 90 W

• max. performance: 90 W

Output

• 5.0 V , 3.0 A, 15.0 W

• 9.0 V , 3.0 A, 27.0 W

• 12.0 V , 3.0 A, 36.0 W

• 15.0 V , 3.0 A, 45.0 W

• 20.0 V , 4.5 A, 90.0 W max.
• max. performance: 90.0 W

Device connections

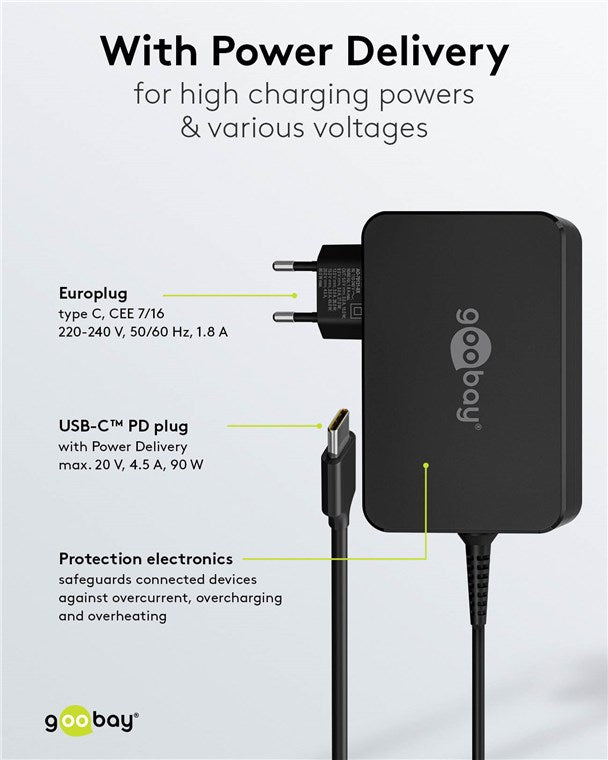

• Input, Voltage Range: 220 - 240 (AC) V

• Input, type: Europlug (Type C CEE 7/16) x in

• Output, max. amperage: 4.5 A

• Output, type: USB-C™ male

• Output, max. amperage: 4.5 A

• Input current: 1.8 A

Cable

• Cable length: 1.8 m

General

• Color: black

• Markings: CE, WEEE, Quader, Haus

• Packaging type: Bulk

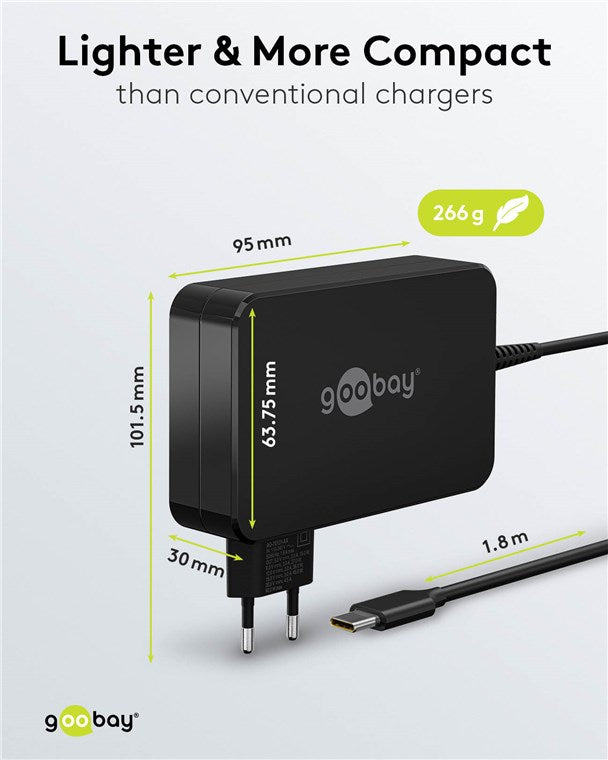

Dimensions / Weight

• Length: 101.5 mm

• Width: 95 mm

• Height: 30 mm

• Weight: 266 g
