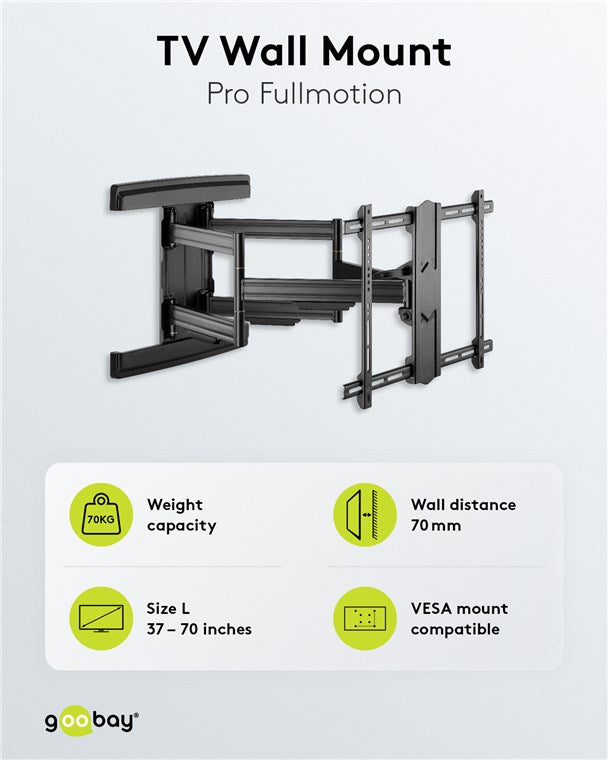

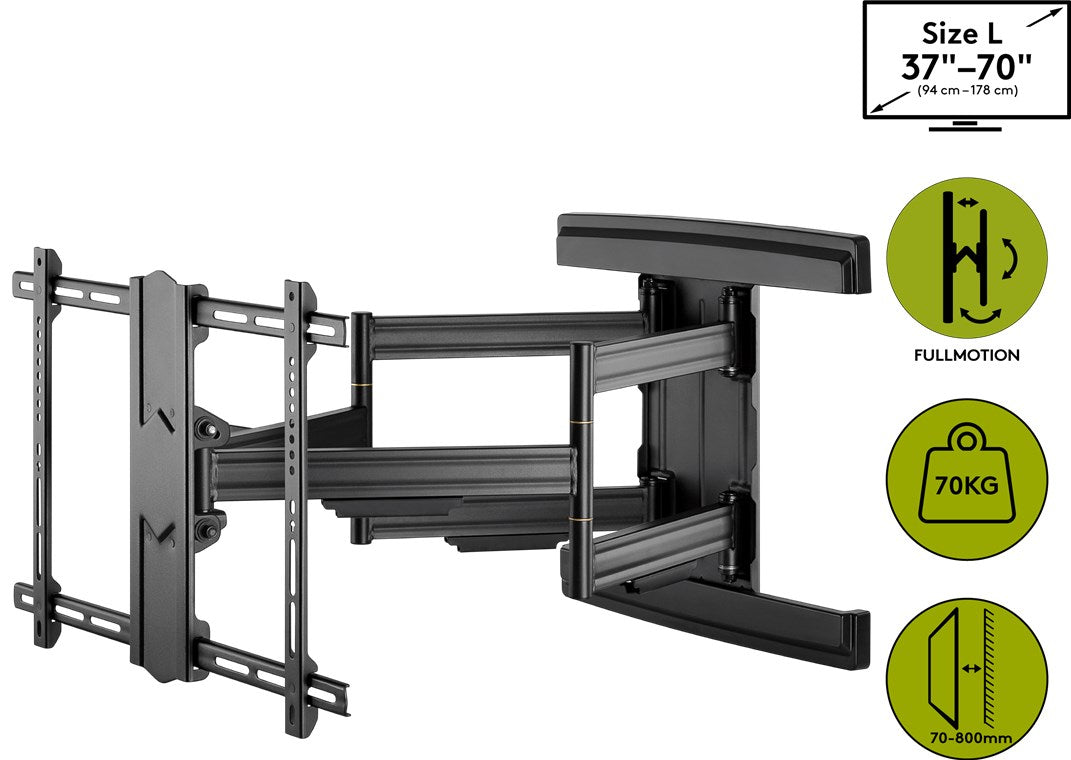

for TVs from 37 to 70 inch (94-178 cm), fully mobile (swivel and tilt) up to 70 kg

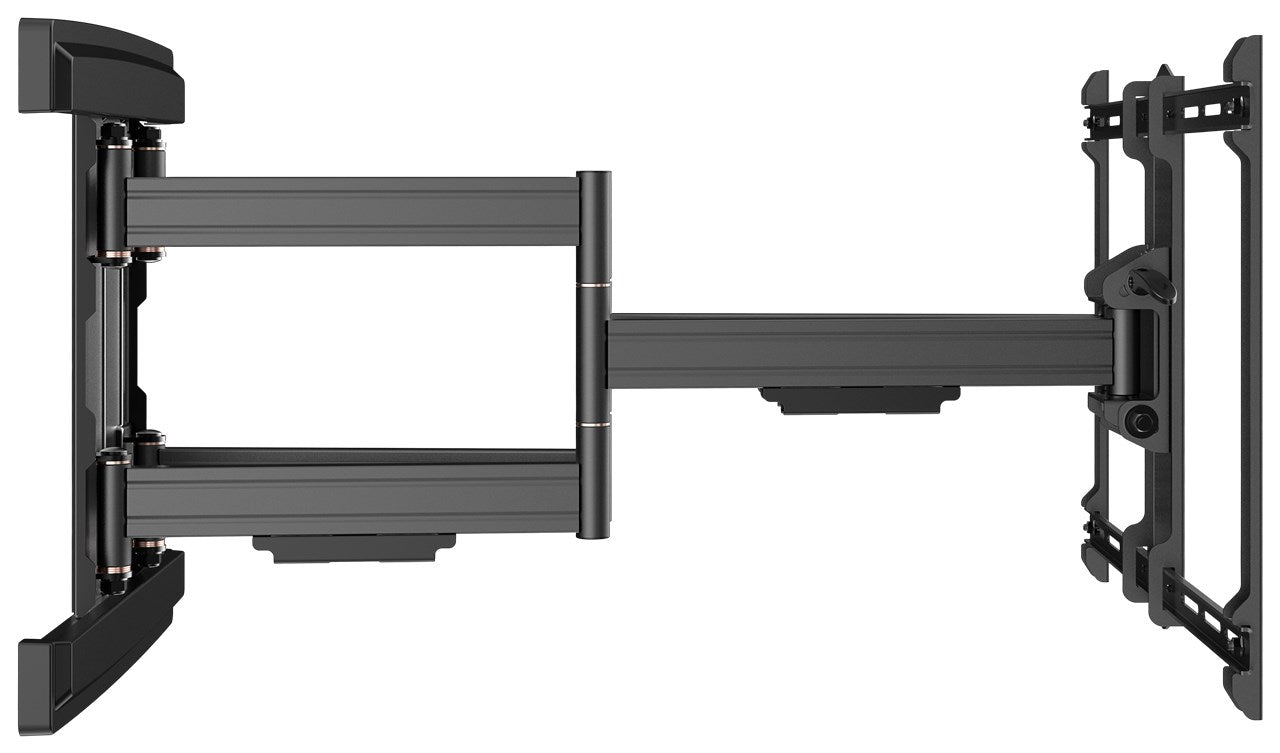

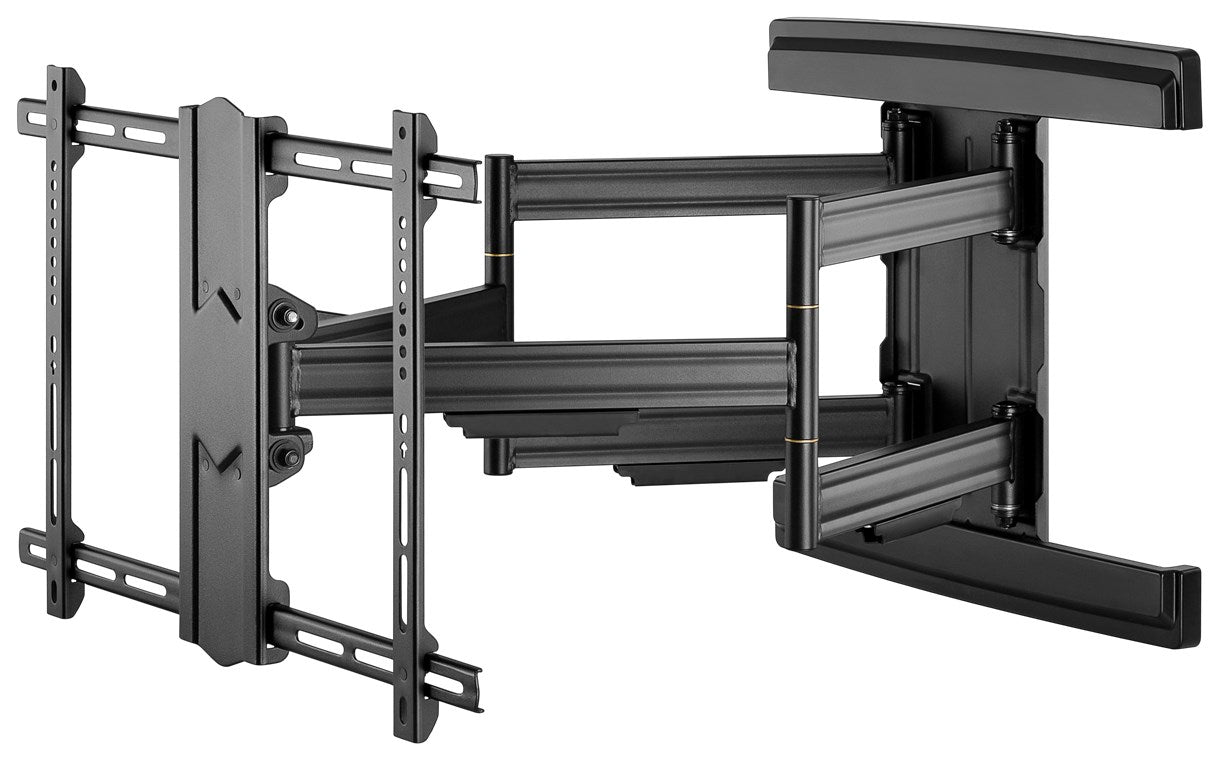

The Full Motion wall mount for most 37 to 70 inch (94-178 cm) TV up to 70 kg. The ""Wide Range"" feature provides up to 800 mm wall distance. This allows a pivot angle of up to ± 90°, even with large screen sizes. Full Motion allows maximum flexibility. You can tilt, pan, spread out and leveled to look at your TV from any seat in the room. All this without tools. The leveling after installation ensures that the TV is perfectly positioned on the wall. The integrated cable management system organizes and protects the cable.

Features

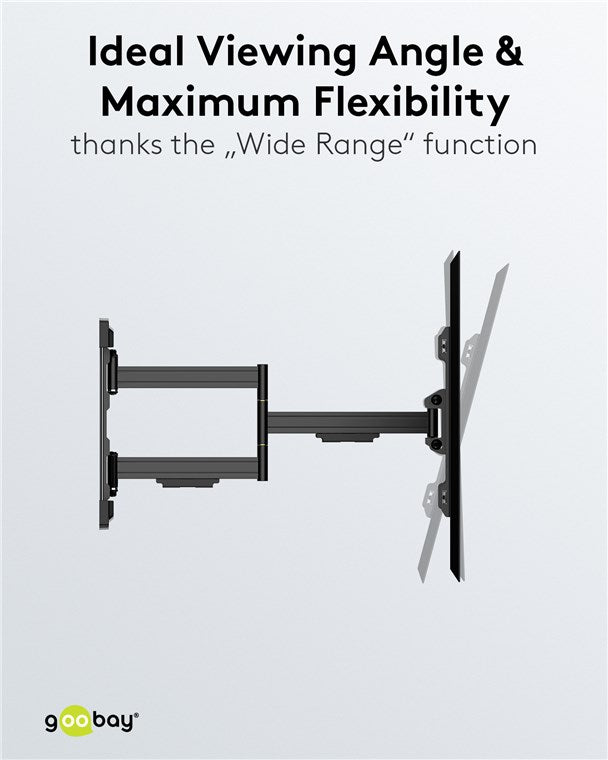

• The ""Wide Range"" function offers up to 800 mm wall distance in the extended state and allows a tilt angle of up to ±90° due to the extended arm, even with large screen sizes.

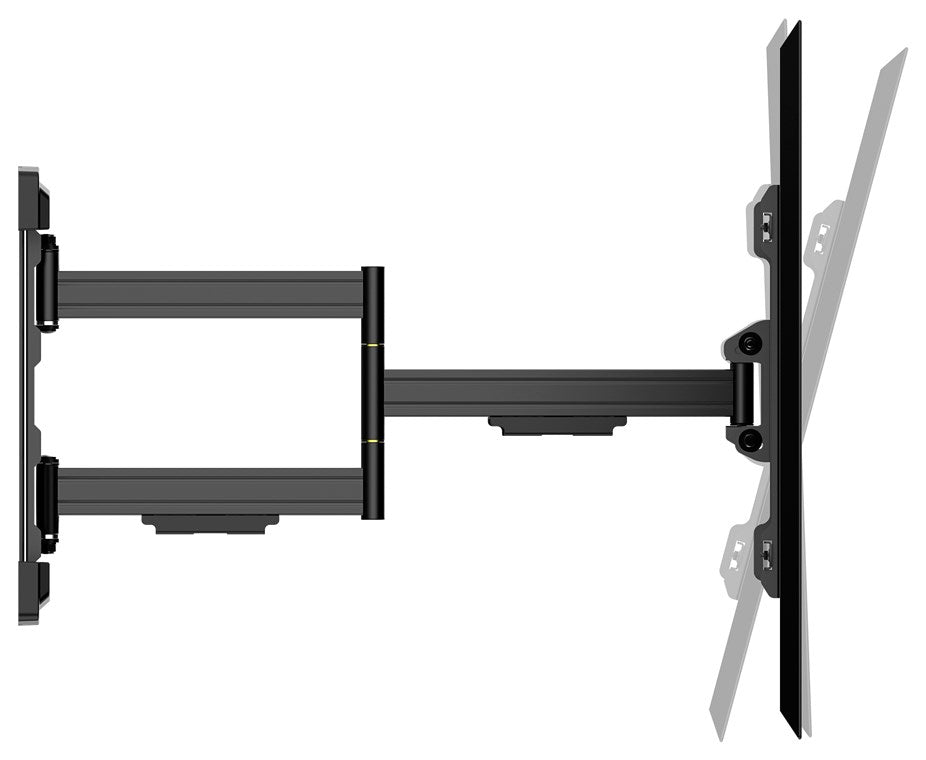

• Perfect viewing angle and maximum flexibility through full mobility in tilt (up/down from +3° to -15°) and swivel (left/right by ±90°)

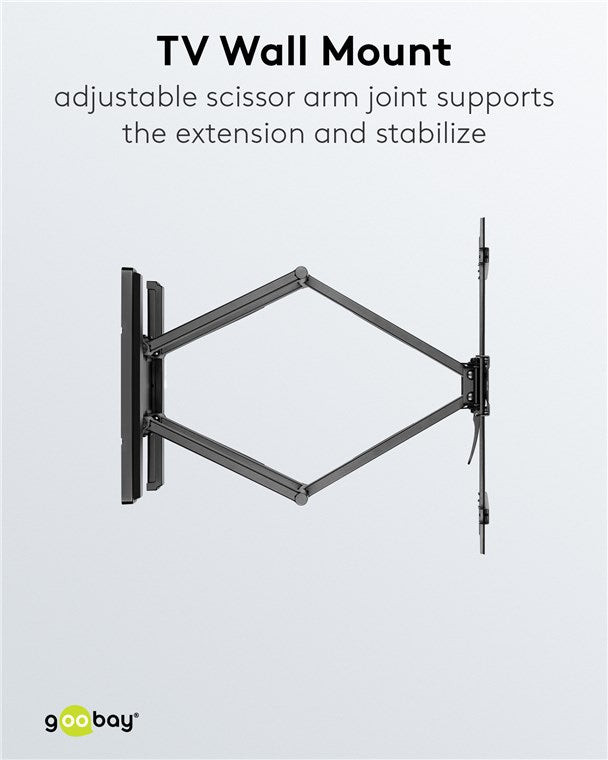

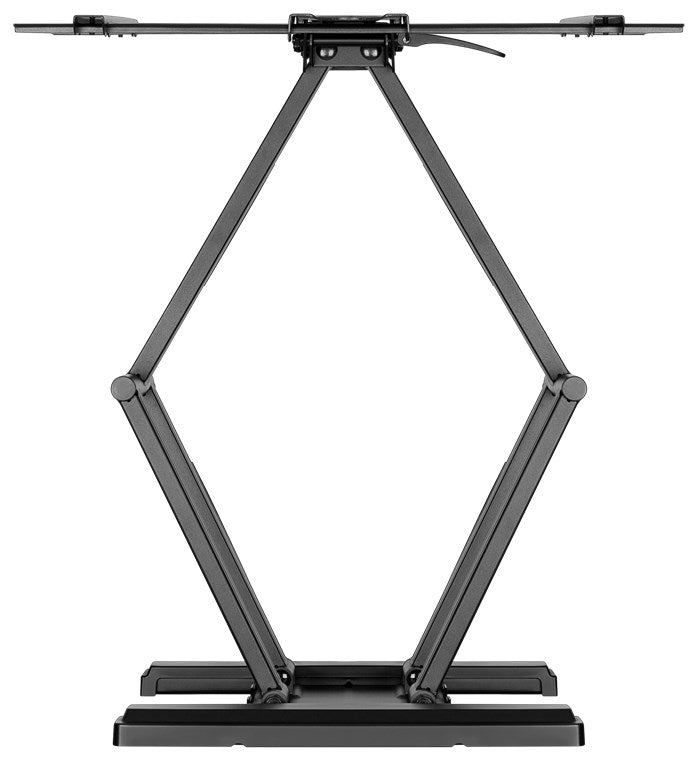

• Adjustable scissor arm joint supports the extension and stabilizes the movement sequence.

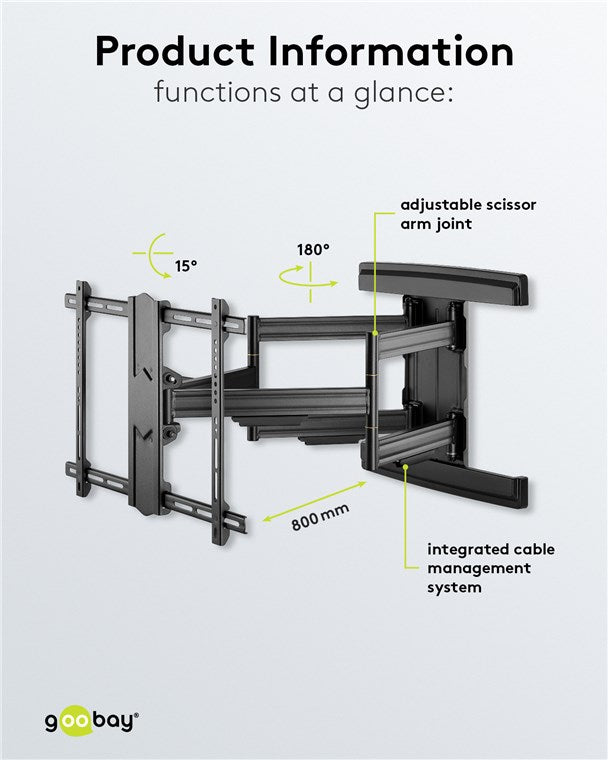

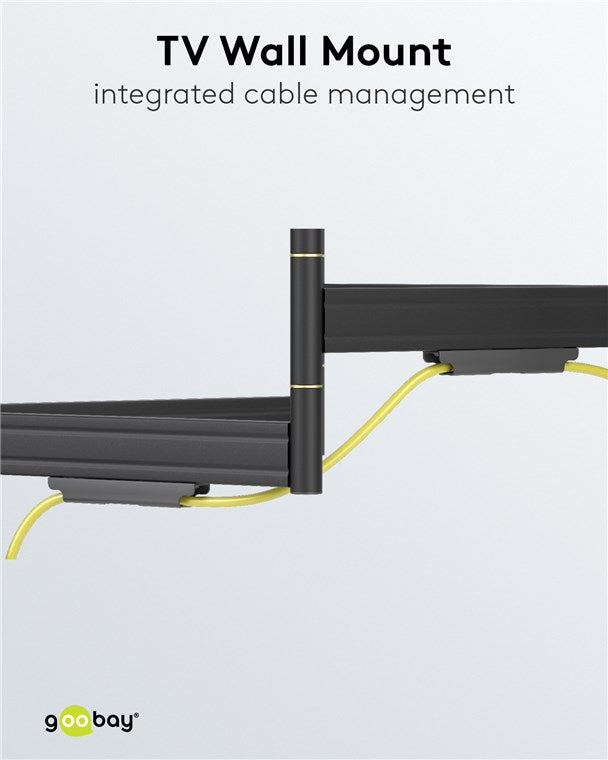

• Wall mount with management system ensures order and protection of the connection cables.

• The wall bracket is suitable for most curved and flat screen TVs of popular brands, e.g. Samsung (QLED and LED), Sony, Philips and LG, as well as for many sizes (e.g. 40 inch, 43 inch, 49 inch, 50 inch, 55 inch, 58 inch, 65 inch).

• Easy mounting and compatible with VESA standards 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 .

Technical specifications

Performance

• Recommended screen size: L (94-178 cm / 37-70"")

• screen Size: 94 - 178 cm

• maximum load: 70 kg

• wall distance: 70 - 800

• Swivel Range: +90° ~ -90°

• inclination and tilting ranges: +2° ~ -15°

• Screen Rotation: +3° ~ -3°

• max. Mouting Hole (VESA): 600x400

• VESA (FDMI): 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 400 mm

General

• Color: black

• Material: steel (powder-coated)

• Warranty: 10 years

• Packaging type: Retail Box

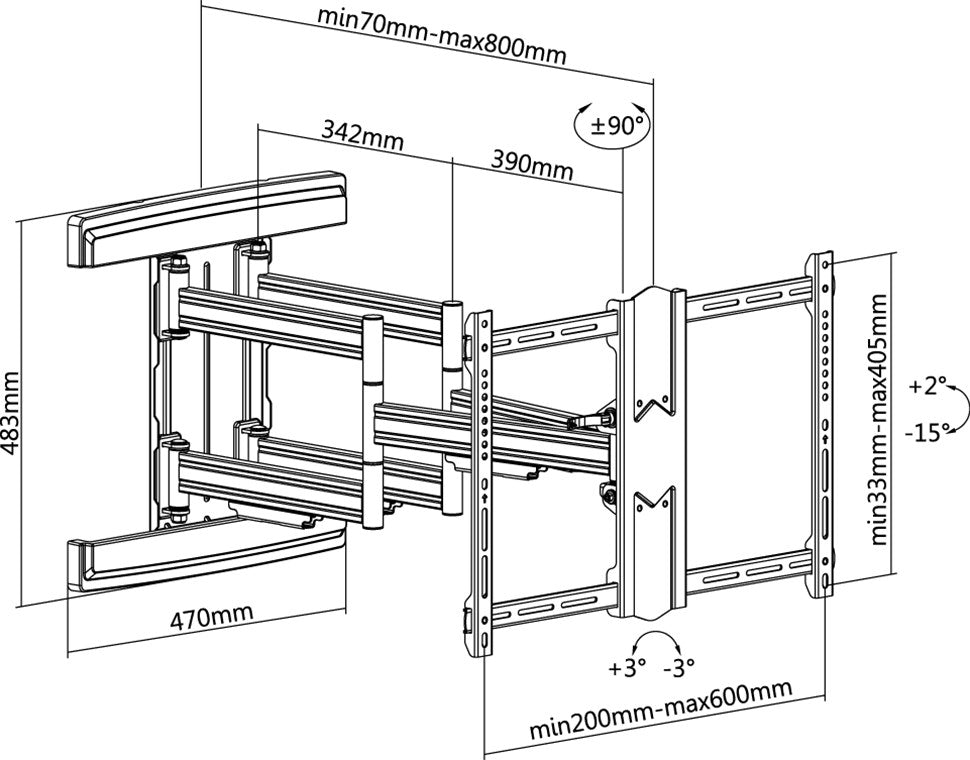

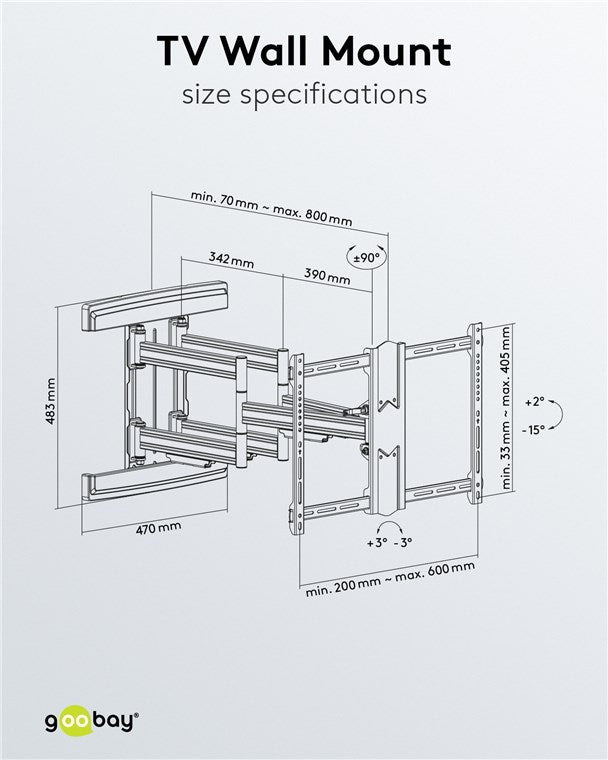

Dimensions / Weight

• Width: 800 mm

• Height: 650 mm

• depth: 483 mm

• Consumption Unit: 1 pc. cardboard box
